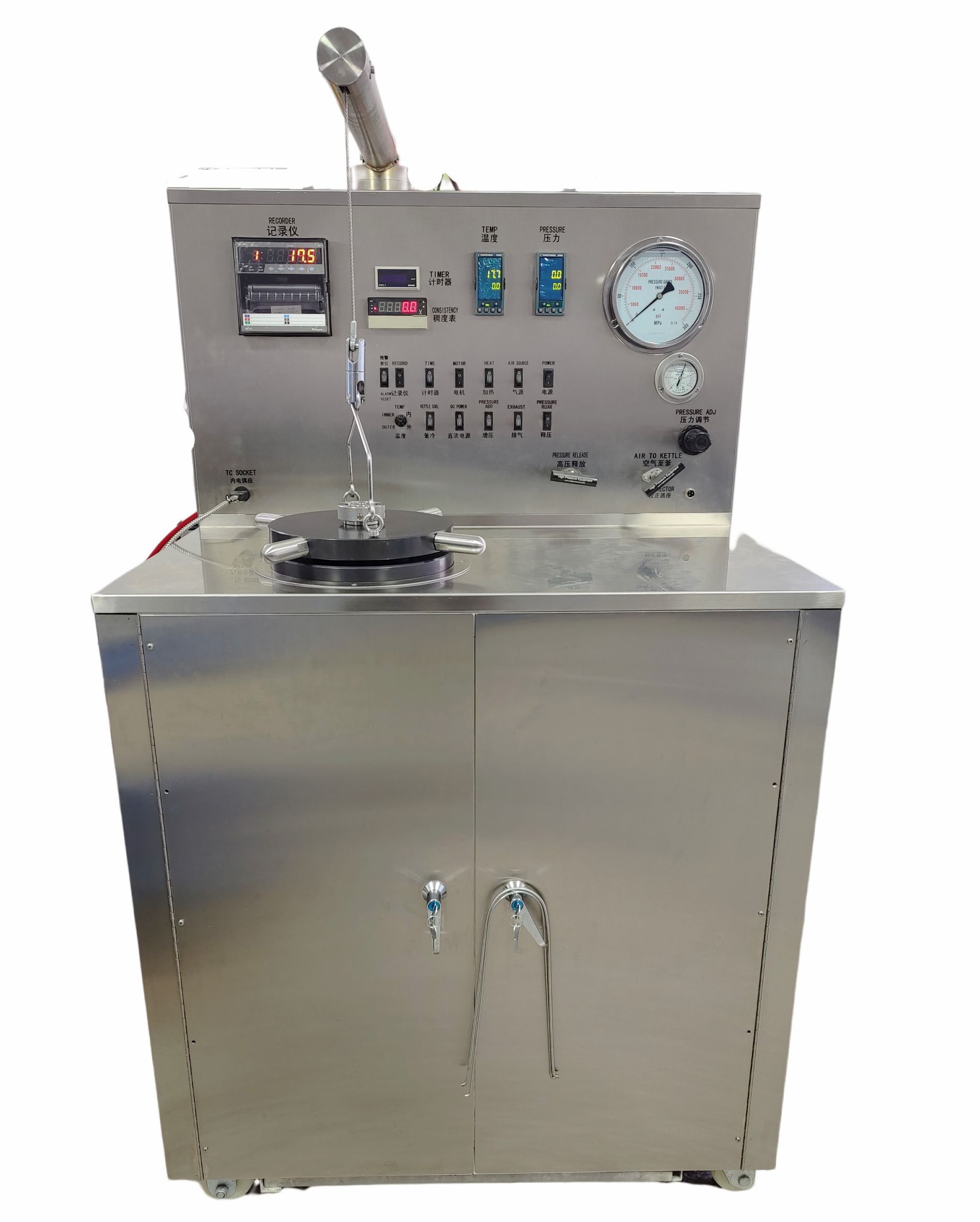

增壓稠化儀單缸SX-0710

結構特點：

1、新型水泥漿稠度測量裝置、新型電機，該稠度測量方式方便、簡潔、易操作，免去調節電位計，清理電位計，校正電位計的過多繁瑣步驟。

2、儀器整體結構新穎，節約空間。整機只用一只機械閥門，操作簡單，外觀整潔。

3、采用英國進口溫度控制器實現溫度、壓力自動控制及稠度測量，控溫精準。報警系統實現稠度上限、壓力上限、溫度超限自動報警，自動停機。

4、多種記錄方式：電腦采集數據，通過軟件記錄溫度、壓力、稠度，實現曲線、數據處理功能。

5、采用原裝進口高壓釋放閥、高壓管線、氣液泵、高壓表、三通、四通、爆破片，意大利原裝進口壓力傳感器、臺灣產減速電機。

      STRUCTURAL FEATURES

New type of cement consistency measurement device, the new motor, the consistency of the measurement method is convenient, simple, easy to operate, eliminating the need to adjust the potentiometer, clean up the potentiometer, correction potentiometer too many cumbersome steps.2, the overall structure of the instrument novel, saving space. The machine is only a mechanical valve, simple operation, the appearance of clean.3, the use of British imports of temperature controller to achieve temperature, pressure, automatic control and consistency measurement, accurate temperature control. Alarm system to achieve the upper limit of consistency, pressure limit, temperature overrun automatic alarm, automatic shutdown.4, a variety of recording methods: computer data collection, through the software record temperature, pressure, consistency, to achieve the curve, data processing functions.5, the use of imported high pressure relief valve, high pressure pipeline, gas pump, high pressure table, three links, Stone, bursts, Italy imported pressure sensors, Taiwan production gear motor.6, the use of new national patent (ZL201010233624.X) high pressure oil filter, easy to disassemble, easy to clean.

儀器的主要技術參數：

1、高溫度： 315℃

2、高壓力： 275MPa

3、高工作溫度： 315℃

4、高工作壓力： 275MPa

5、電源： AC220V （±10%） 50Hz 4.2kW

6、攪拌轉數：150±15 r/min

7、溫度控制精度：＜±1℃

8、壓力控制精度：＜±0.7MPa

9、溫度及壓力多段多程序自動控制，大升溫速率：3℃/min

10、RS-232通訊接口，PC機數據采集系統

11、體積：56.5×90×185cm

       SPECIFICATIONS

1,Maximum temperature: 315 ℃

2, the maximum pressure: 275MPa

3, the maximum operating temperature: 315 ℃

4, the maximum working pressure: 275MPa

5, power: AC220V (± 10%) 50Hz 4.2kW

6, stirring the number of revolutions: 150 ± 15 r / min

7, the temperature control accuracy: <± 1 ℃

8, the pressure control accuracy: <± 0.7MPa

9, the temperature and pressure multi-step multi-program automatic control, the maximum heating rate: 3 ℃ / min

10, RS-232 communication interface, PC data acquisition system

11, volume: 56.5 × 90 × 185cm
